CC-RANGE - heat pumps, chillers and combined heat and cooling
The CC-range contains Fenagy’s smallest heat pumps, chillers and combined units. The capacity range is 250-400 kW per unit, available as air-source (heat pump) or air-cooled (chiller) units. The close-coupled heat pumps and chillers are plug-and-play solutions delivered on a steel frame containing the heat pump/chiller in an enclosure at one end and the energy collectors or gas cooler at the other. The close-coupled units are designed to deliver optimal performance in accordance with customer-specific operation needs.
All heat pumps and chillers in the CC-range use the natural refrigerant CO₂, which is ideal for applications with heat-sink return temperatures below 45°C and supply temperatures up to 85°C. The units are working efficiently at any ambient temperature. A close-coupled heat pump or chiller is a practical solution offering affordable heating and/or cooling and is typically used for industrial applications and communal & district heating.
APPLICATIONS
Industrial processes
Communal & District heating
Green houses · Water parks
Offices and hospitals
Easy installation with enclosure

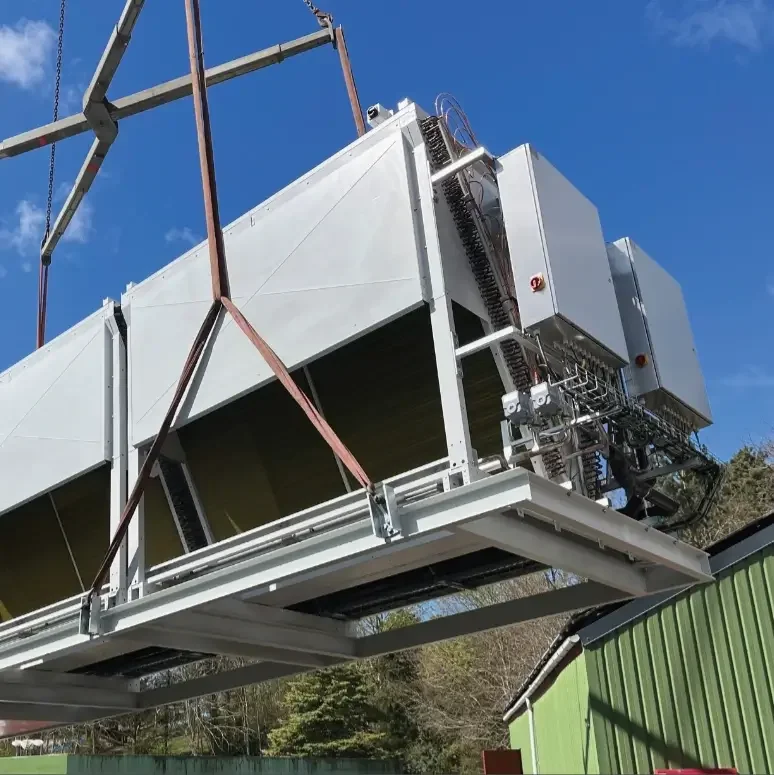

The heat pumps and chillers are designed for easy on-site installation. When close-coupled with the energy collectors or gas cooler, they function as a plug-and-play solution. The frame should be mounted on eight foundation pillars. The enclosure includes lighting, ventilation, a CO₂ alarm and sound-dampening panels. The electrical panel is integrated into the unit, along with waterside pumps, valves and an energy meter.
Control systems

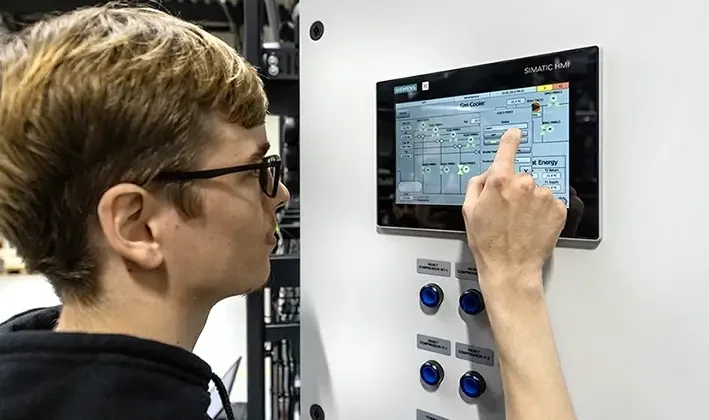

The complete range uses a standard Siemens PLC controller, and Fenagy has developed its own PLC algorithms for the most essential functions to ensure optimal control and monitoring. Our PLC solutions can communicate with most of the platforms the customer will need to communicate with. The onboard HMI panel offers direct monitoring of the system and its operating conditions. Furthermore, our PLC solutions support several communication protocols and can integrate with the overall SCADA system.
For an air-sourced heat pump, it is essential to have an efficient and robust defrost system that can secure heat production, regardless of weather conditions. Furthermore, unique features have been developed enabling the heat pump to restart automatically after an emergency stop and even after heavy snowfall.
For all systems, Fenagy aspires to minimise start-up and shutdown times, enabling the system to help balance the electrical grid in a future with an increasing demand for such functions. Last, but not least, the system can deliver high supply temperatures, and Fenagy is continuously pushing the boundaries with new functions and features in the PLC development.
Technical specifications &
key features
Capacity shown at:
5°C ambient temperature
85% relative humidity
70°C/40°C flow and return temperature
Fast start and stop for balancing the electrical grid
Efficient and robust defrosting
Internal heat exchangers and receiver, designed for heat pump operation
Industrial design with stainless steel piping
Water pump, energy meter and various valves can be integrated on the rack
PLC control of the entire heat pump/chiller, including optimised air-source evaporators
Low-pressure ejectors for increased performance
We only use natural refrigerants
R744 - CO₂
APPLICATIONS: District heating, heat networks, industrial processes, food industry, green houses, data centres, logistics centres, offices, hospitals and HVAC in general
Natural refrigerant with a wide temperature range
Non-toxic and non-flammable
Excellent choice for air-sourced heat pumps for direct use in the energy collectors and with high delta T on the heat sink side
Optimal for medium-temperature water-sourced heat pumps, chillers and combined heating and cooling applications
Medium-high temperature level on heat sink (up to 85°C supply temp) with high delta T on the heat sink (dT: 30-40K)
R600a - Isobutane
APPLICATIONS: Heat networks, Biogas, PtX, geothermal, carbon capture, CO₂ heat pump sub-cooler, industrial processes and food industry
High-temperature natural refrigerant
Suitable for water-sourced heat pumps and chillers
Can be used in a wide temperature range on both the heat source and heat sink sides
Robust operation under various operating conditions
Use of efficient screw compressors and high COP of the cycle
High temperature level on heat source (up to 40°C evap. temp)
High temperature level on heat sink (up to 95°C supply temp) and ideal with low delta T on heat sink - serial coupling on water side at higher delta T
R290 - Propane
APPLICATIONS: Heat networks, industrial processes, food industry, data centres, offices, hospitals and HVAC in general
Low-temperature natural refrigerant
Suitable for lower temperature water-sourced heat pumps and chillers
Low temperature level on heat source (down to -30 °C evap. temp)
Medium temperature level on heat sink (up to 75 °C supply temp)
Ideal with low delta T on sink and heat source
High refrigeration capacity ensures compact solutions with small footprint
Can be combined with isobutane in serial hydraulic couplings
